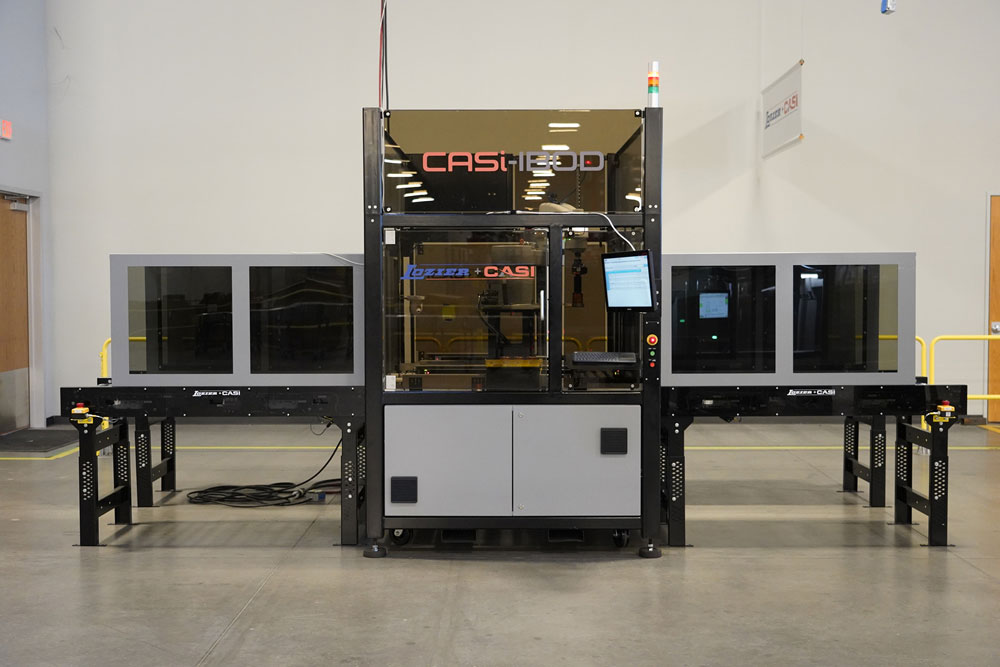

The CASi-IBOD (Intelligent Box Opening Device) is an inline, pass-through box opening solution with an automated box cutting for safe inventory extraction. The CASi-IBOD helps eliminate injuries and minimize damaged products and workplace injuries associated with manually cutting boxes.

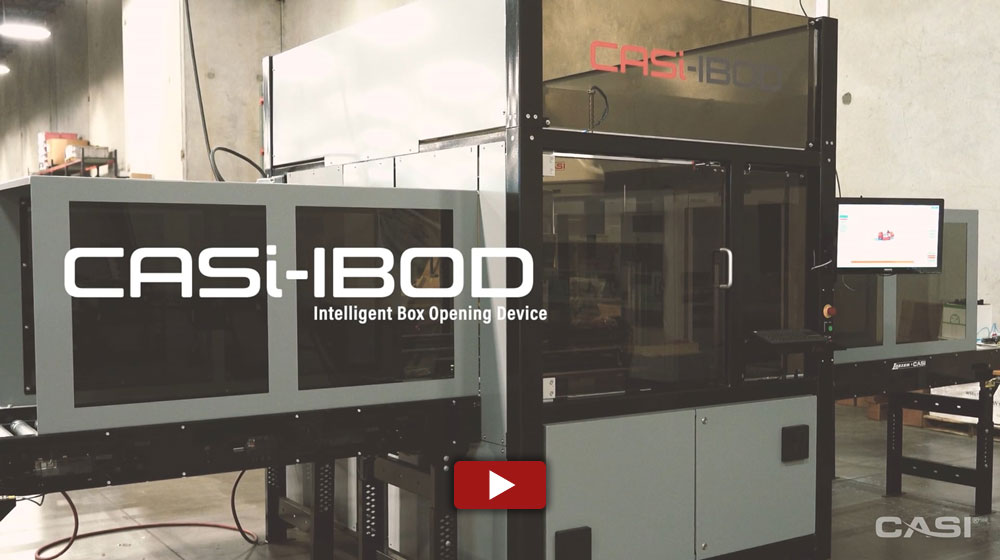

IBOD Overview (1:40)
CASi-IBOD is the industry standard box opening device trusted by leading companies around the world.

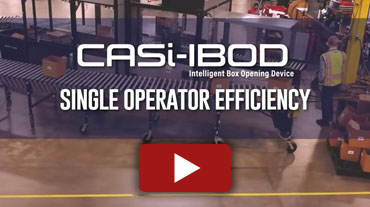

CASI-IBOD Single Operator (1:09)
CASi-IBOD can be operated with a single operator utilizing our CASi-PowerFlex Conveyor.
CASi-IBOD receiving automation (1:30)
CASi-IBOD can be connected to multiple CASI systems to maximize your warehouse operations.
CASi-IBOD pick label application (1:31)
Add a barcode scanner to the inbound CASi-IBOD process to verify products are received.

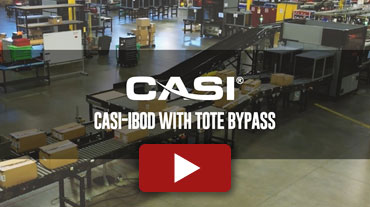

CASI-IBOD tote bybass (1:53)
Add a tote bypass to our CASi-IBOD for products that do not need to be opened.

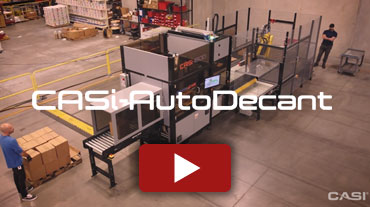

CASI-IBOD with autodecant (1:35)
CASi-IBOD can be combined with a decanter system to remove product from the packages after opening.

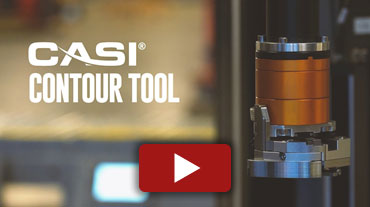

CASi-IBOD contour tool (1:20)
CASi-IBOD uses a unique Contour cutting tool to open boxes of different shapes and sizes.
CASi-IBOD explained (1:16)
Hear our CEO talk about CASI-IBOD and how it can help your operations.
Why CASI, WHy CASI-IBOD (3:03)
Learn about CASI as a company and how CASi-IBOD can benefit your warehouse operations.
HOW CASi-IBOD WORKS

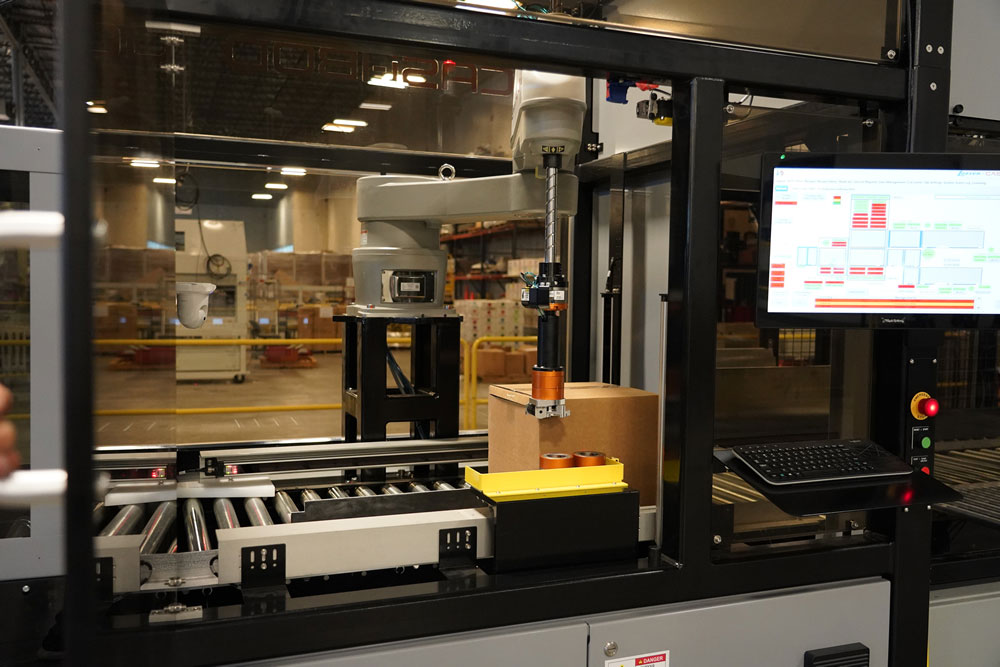

Boxes can be fed in any order by any size. The CASi-IBOD measures the size of every incoming case to provide precision cuts to each box. This allows faster product removal by cutting and extracting items safely by removing the necessity of human use of a box cutter.

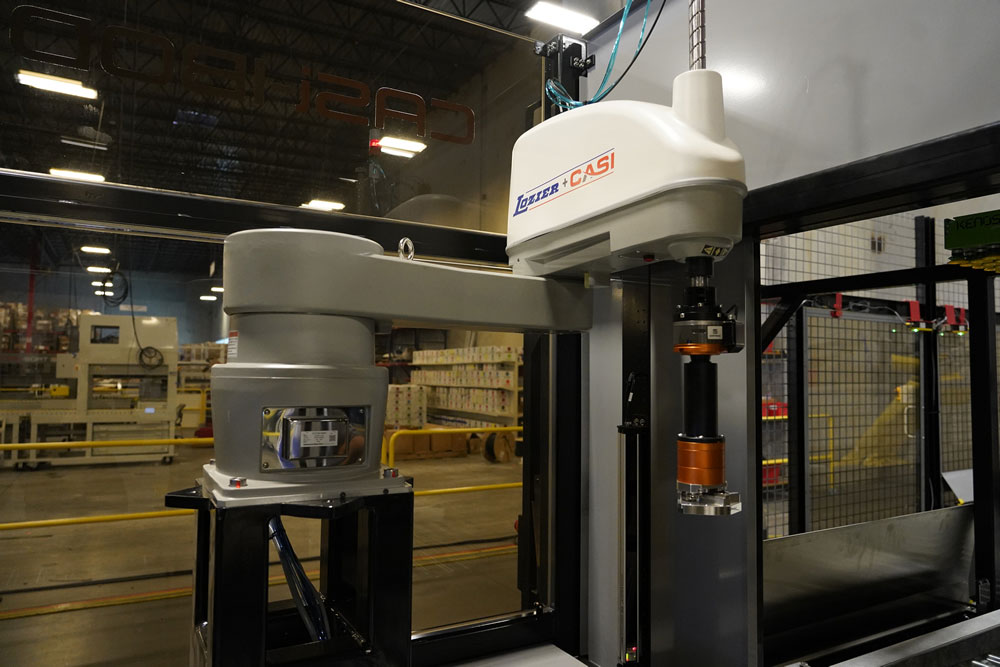

Automatic Tool Changer
CASi-IBOD tracks the blades usage over time to determine when the blades start getting dull. When the blades are worn, the robot will automatically replace the cutting tool with a new cutting tool & fresh blades.
Software
An unlimited number of box-cutting configurations are available within the CASi-IBOD specifications. System provides data logging for integration with upper-level warehouse management systems (WMS). It can be fully integrated into third-party hardware & software platforms. A built-in maintenance screen is also included for easy troubleshooting.
Remote Support
Camera, Diagnostics & Technical Phone Support
Lid Popper
Pops the lid open just enough to ensure it can be effortlessly removed in a downstream operation. The lid remains with the box once its been popped open.
Safety
E-Stops, Light Curtains, Impact Sensor, Safety Tunnels & Acrylic doors
CASI Contour Tool
Selects the ideal cut path to ensure fast, clean openings without damaging contents. With programmable depth control & the ability to cut a variety of box shapes.
variations
| Specifications | CASi-IBOD Single | CASi-IBOD Duo |
| Maximum Rate | 550 per hour | 950 per hour |
| Minimum Box Size (LxWxH) | 6″x6″x4″ (153mm x 153mm x 102mm) | 6″x6″x4″ (153mm x 153mm x 102mm) |
| Recommended Height Between Top of Box and Product in Box | >0.25″ | >0.25″ |
| Maximum Box Size (LxWxH) | 30″ x 21″ x 20″ (762mm x 533mm x 483mm) | 30″ x 21″ x20″ (762mm x 533mm x 483mm) |
| Power Requirements | 230Vac, 60/50 Hz, 3 pH, 30 Amp | 230Vac, 60/50 Hz, 3 pH, 30 Amp |
| Air Requirements | 2.2 CFM @ 90 psi | 5 CFM @ 90 psi |
| System Overall Dimensions | 17’5′ L. x 6.1′ W x 9.2′ H. | 17’5′ L. x 9.1′ W x 9.2′ H. |
wHAT TYPE of Boxes Can Be Cut?
A broad range of box sizes can be automatically cut by the CASi-IBOD, as it measures the size of every incoming box in real-time. Same SKU batches – similar and mixed – may be processed by the CASi-IBOD, working seamlessly with standard workflows
wHAT TYPE OF CUT DO YOU NEED?
- Side Cut (3-sided or 4-sided)
- Tab Cut
- Top Face Cut
- Tape Cut
- Window Cut
- Chip Board Cut

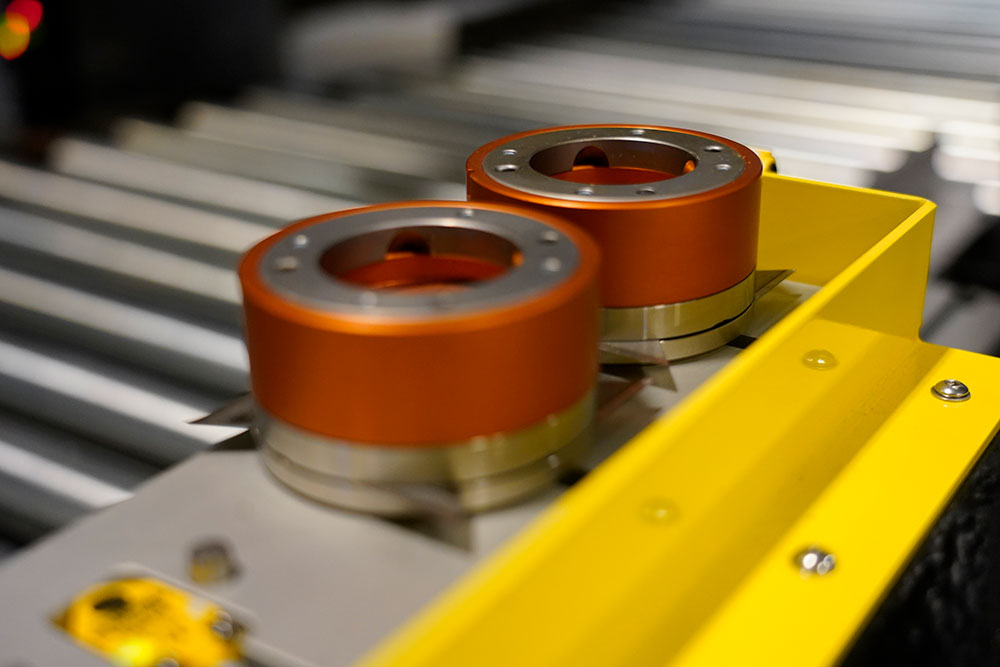

Hot Swap tool
A three-head cutting tool replacement tray with a quick-release design, allowing for fast, hassle-free & safe reloading.
Scan Tunnel Module
Up to 5-sided scan module upstream of the CASi-IBOD confirms product received & provides better inventory visibility. This scan can also be used to automatically select the desired cut by SKU
Box Flipper
The carton is lifted vertically from the conveyor, rotated 180° & placed back onto the conveyor. The open end of the carton is now face down on the conveyor & the carton is conveyed to the decant module.
Lid Popper
Pops the lid open just enough to ensure it can be effortlessly removed in a downstream operation. The lid remains with the box once its been popped open.
Automatic Lid Remover
The integrated Lid Remover removes box lids to prepare for decanting.
Sorter
Optional integrated sorters optimize flow into & out of the CASi-IBOD & can be configured to allow for a system of multiple infeed &/or outfeed conveyors.

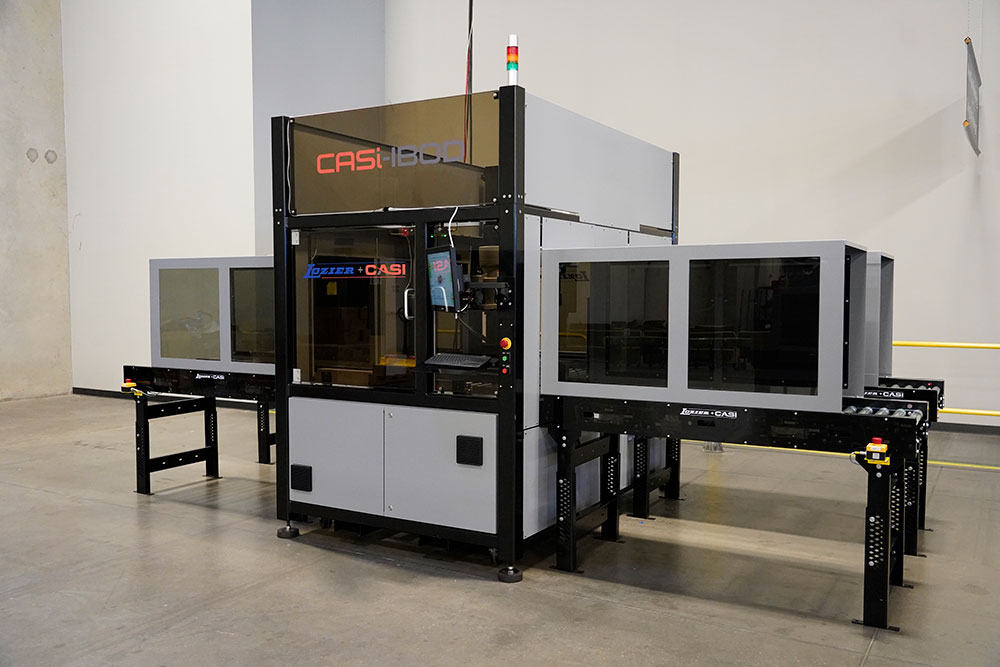

CASi-IBOD gALLERY
